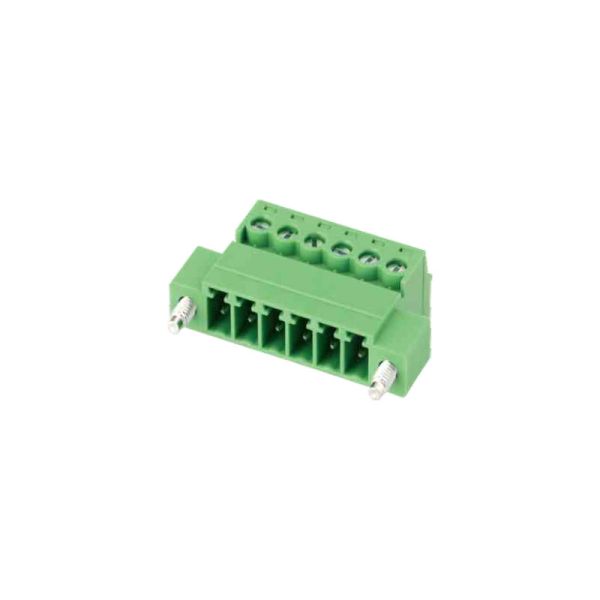

Copper Power Wire PCB Plug-In Terminal Block Screw Head Fixed 3.81mm Pitch

Product Categories

CIXI ZHONGYI ELECTRONIC EQUIPMENT FACTORY

Contact Now

Copper Power Wire PCB Plug-In Terminal Block Screw Head Fixed 3.81mm Pitch

Name: Copper Power Wire PCB PlugIn Terminal Block Screw Head Fixed 381mm Pitch
Brand: ZHONGYI
Price: 0.28100 USD

Brand Name : ZHONGYI

Model Number : HQ15EDGKRM

Place of Origin : China

MOQ : 100pcs

Price : $0.28 100~299pcs/$0.26 300~499pcs/$0.24＞500pcs

Payment Terms : T/T

Supply Ability : 10000pcs/week

Delivery Time : 1-3 work days

Packaging Details : carton box

Pitch : 3.81mm

Poles : 2-22P

Screws : M2.0.Steel.Zinc plated

Wire guard : Phosphor bronze.Ni plated

Pin header : Brass. Tin plated

Housing : PA66.UL94V-0

Contact Now

Screw head fixed HQ15EDGKRM-3.81mm pitch PCB plug-in copper power wire terminal block

Electrical

Rated voltage	300V
Rated current	8A
Withstanding voltage	AC1600V/1Min
Wire range	28-16AWG

Mechnical

Temp range	-40℃~+105℃
Max soldering	+250℃ 5 Sec
Torque	0.2Nm(1.7Lbin)
Strip length	6~7mm

Remarks:
 The screw divided into slotted and phillips. If you have specific requirement, pls note or contact us.

Customized service:

LOGO, please send us your logo,we can put it on the product.
 Packing, we accept customer's package,if you have specific requirement,please tell us.
 ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.

Features:

The screw terminal is firmly connected.

It can connect all types of wires with cross section from 0.08㎡ to 25.0㎡.

Pitch from 2.54mm to 15.0mm is available.
